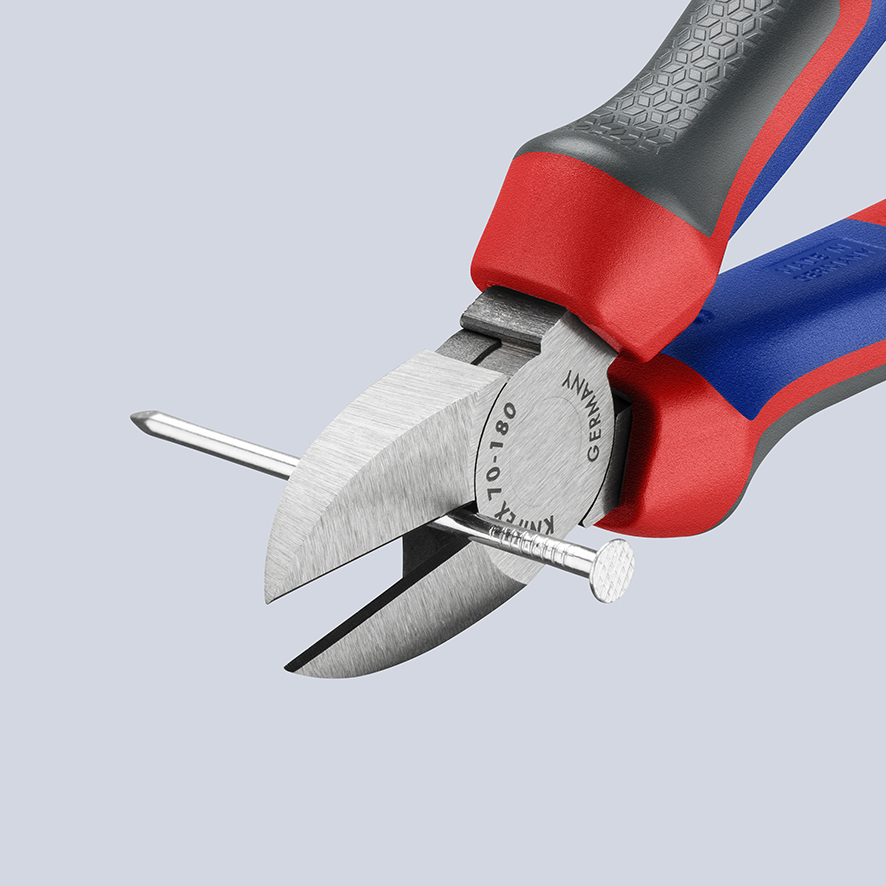

Knipex 70 02 180 | Diagonal Cutter | Multi-Component Handle | Black Atramentized – 180mm
23.00 JD
The Knipex 70 02 Series Diagonal Cutting Pliers are one of the top selling cutters across our range, here are a few reasons why!
Key Features:
– Designed for all-round use.
– High quality material and precise workmanship for long service life.
– Narrow head style for use in confined areas.
– Precision cutting edges for soft and hard wire.
– Clean cutting of thin copper wire.
– Cutting edges are additionally hardened, to a hardness of 62HRC.
Product Specification:
– Pliers: Black Atramentized
– Head: Polished
– Handles: Multi-Component
Technical Attributes :
– Cutting capacities medium hard wire (diameter) – Ø 3.0 mm
– Cutting capacities hard wire (diameter) – Ø 2.5 mm
| Weight | 0.252 kg |
|---|
Reviews (0)
Related products
Knipex 13 82 200 | Electrical Installation Pliers | Multi-Component Handle | Black Atramentized – 200mm
13 82 200 Pliers for Electrical Installation
6 functions in one pair of pliers. multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers.
Technical Atributes:
- Cutting capacity copper cable, multiple-stranded: Ø 15 mm
- Cutting capacity copper cable, multiple-stranded: 50 mm²
- Stripping capacity for cross-sections: 0.75-1.5 mm²?/ 2.5 mm²
- Capacity in square millimetres: 0.5-2.5 mm²
- AWG: 1 / 0
- Length : 255 mm
- Width : 85 mm
- Height : 20 mm
- Weight : 280 g
Knipex 68 01 160 | End Cutter | Coated Handle | Black Atramentized – 160mm
The Knipex 68 Series End Cutter is one of the most popular products in our range, and for good reason!
Key Features:
- The head shape provides optimal movement when tightening steel mesh knots during reinforced concrete work.
- Cutting edges for soft and hard wire.
- Suitable for twisting and cutting binding wire.
- Cutting edges are additionally hardened, to a hardness of 61HRC.
- High-grade special tool steel, forged, and multi-stage oil hardened.
Product Specification:
- Pliers: Black Atramentized
- Head: Polished
- Handles: Plastic Coated
Technical Attributes :
- Cutting capacities medium hard wire (diameter) - Ø 2.8 mm
- Cutting capacities hard wire (diameter) - Ø 2.3 mm
- Cutting edge length mm (C) - 25 mm
Knipex 77 02 115 | Electronics Diagonal Cutter With Box Joint | Multi-Component Handle | Mirror Polished – 115mm
77 02 115 Electronics Diagonal Cutter
With box joint
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
- Round head, with small bevel
Technical attributes :
- Cutting capacities medium hard wire (diameter) - Ø 1.2 mm
- Cutting capacities hard wire (diameter) - Ø 0.6 mm
- Cutting capacities soft wire (diameter) - Ø 01 mm
- Jaw length (B) - 14 mm
- Jaw thickness (joint) (D) - 7.5 mm
- Head width (A) - 11 mm
