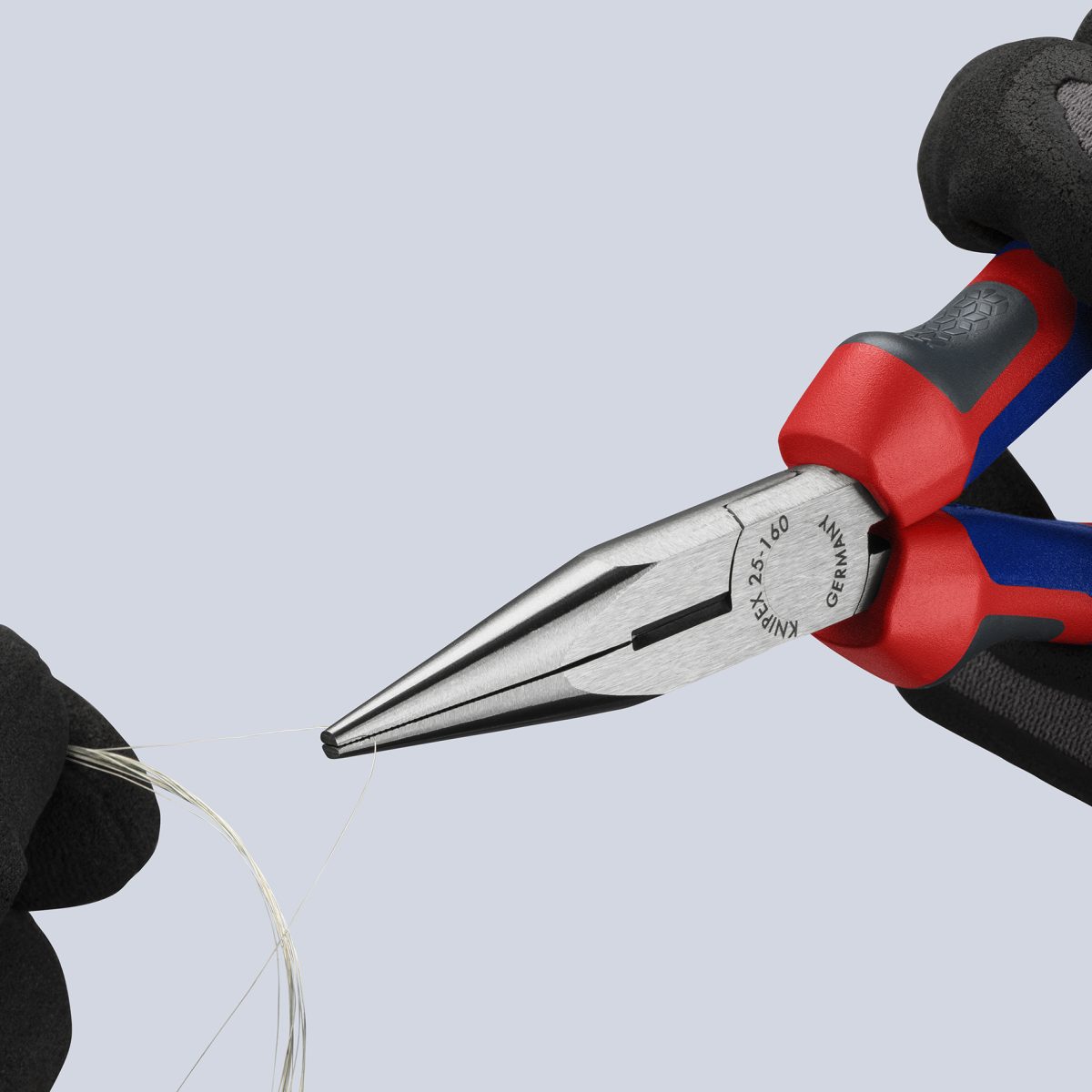

Knipex 25 02 160 | Snipe Nose Side-Cutting (Radio) Pliers | Multi-Component Handle | Black Atramentized – 160mm
16.00 JD
25 02 160 Snipe Nose Side Cutting Pliers
Suitable for finer gripping and cutting work. Half-round, long, tapered jaws. Knurled gripping surfaces. With cutting edges for soft, medium-hard and hard wire. Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC. straight jaws.
– Cutting capacities medium hard wire (diameter): Ø 2.5 mm
– Cutting capacities hard wire (diameter): Ø 1.6 mm
– Jaw thickness (joint) (T1): 9.0 mm
– Tips width (W4): 3.0 mm
– Tips thickness (T2): 2.5 mm
– Jaw length (L3): 50.0 mm
– Head width (W3): 16.5 mm
Technical attributes :
Length : 170 mm
Width : 55 mm
Height : 19 mm
Weight : 144 g
| Weight | 0.144 kg |
|---|
